stiltz home elevator

About stiltz home elevator

The Stiltz Duo Benefits

• Small footprint: The Stiltz Home Lift has one of the smallest footprints of any lift domestic lift and covers less than a square metre.
• Low power consumption: All lifts are plug straight into a normal power socket making them very green and economical.
• Whisper quiet: Unlike other domestic lifts, Stiltz do not use noisy hydraulics or vacuum systems making them quieter than many stairlifts.
• Unique guide system: Home lift travels on self-supporting stilts thanks to parallel and vertical guides which eliminate need for load bearing walls.
• Fasrt installation: Modular design means lift can fit under most doorways and ceilings and be pieced together fast with a typical install taking one day.
• Self contained drive system : Domestic lift is powered by an electric motor which is neatly situated, hidden from view, at top of home lift.

Standard Features

• Standard Finishes Duo+: pale warm grey construction with clear polycarbonate lift car body. Duo Classic: neutral cream exterior and door with a matching beige interior lining colour.
• Half Height Door The door is interlocked and is made to match the finish of the lift.
• 2 X Remote Controls Call and send the lift remotely and also use it to move heavy or awkward items between floors.
• One Year Warranty All Stiltz Lifts carry a compehensive 12 months parts and labour warranty which includes 1st years service. Maintenance packages available at extra cost.
• Internal LED Downlights These are programmed to turn on once the user has entered the lift and remain on for the entire journey.
• Battery Back Up System If there is a power cut while using the lift it will descend to the lower level of the home and wait until the power comes back on.
• Full Height Light Curtain Light Curtain is fitted with a half height door.
• Interior Telephone In the very unlikely event that the lift stops while you are travelling in it, help is just a phone call away.

Optional Extras

• Fold Down Seat This is a popular option selected by customers for the short trip between floors.
• Interior Grab Rail Offers increased security for the occupants of the lift.
• Full Height Door An interlocked door that replaces the half-height door and light curtain.
• Bespoke Colours & Finishes Customise your Stiltz lift by choosing different colour lift car, rails and interior lining (Classic range only).

Safety Features

• Full Height Light Curtain A full-height motion sensor is situated at the entrance of our lifts (unless a full height door is chosen). If this barrier is crossed the lift will immediately stop.
• Safety Lid Plug This crucial feature plugs the aperture in the floor when the lift is in the downstairs position. It is strong enough to stand on and you can place your original flooring on top to blend in.
• Key Switch Operation This feature allows the owner to isolate the lift if the need arises. This is commonly used when going away on holiday or when the grandchildren are around.
• Top & Bottom Safety Pans Using our obstruction sensing covers, a Stiltz Lift can detect objects above or below the lift, causing it to immediately stop.
• Hold-To-Run Controls Operating a Stiltz Lift requires constant pressure to the controls. This allows the user to drive the lift and feel in total control.
• Weight Limit Sensors Our Duo Lifts are limited to 170Kg, 27 stone/ 375lbs. The lift detects anything exceeding this limit and will not travel.
• Out Of Balance Sensors Sensors will detect if the lift is ever out of balance and prevent the unit from travelling.
• Fall Arrest Mechanism This patented system prevents the car from falling in the unlikely event of the steel ropes going slack.
• Emergency Stop Button This button is front and centre for the user in the event of an emergency.
• Over Speed Detection The lift uses an optical sensor to detect the speed of travel. If this increases beyond a certain speed, the sensor will stop the lift from travelling in that direction.

Effortless Accessibility for Every Home

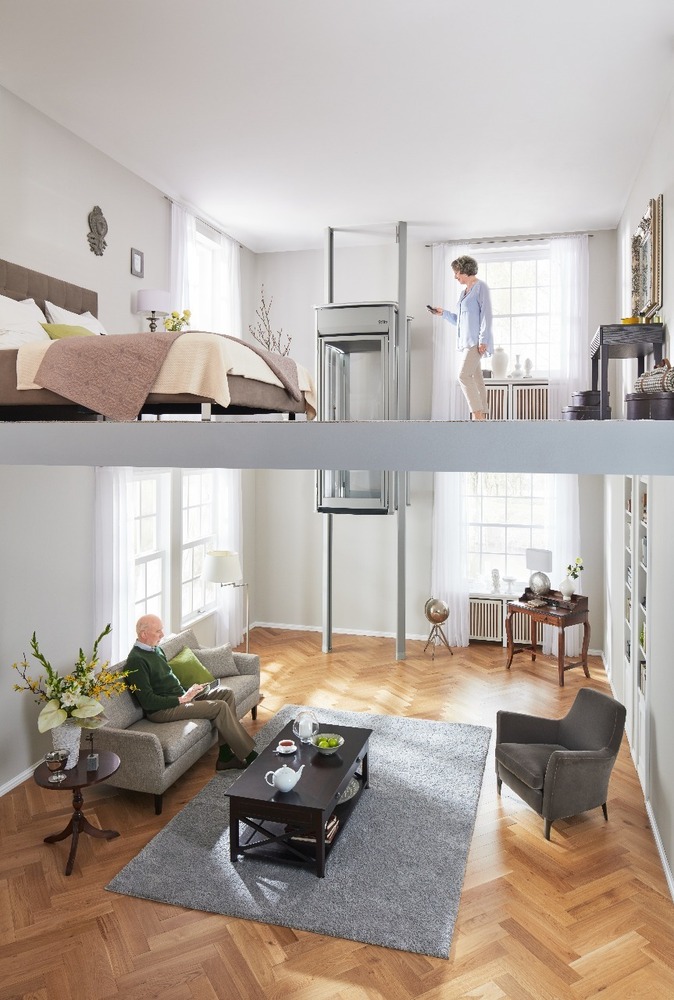

The Stiltz Home Elevator enhances independent living by providing seamless movement between floors. Thanks to a user-friendly remote control, all family members, including those with mobility challenges, can access different levels of their home easily. Its whisper-quiet operation and unobtrusive design make it a perfect fit for modern residences.


Simple Installation Process

The installation of the Stiltz Home Elevator is straightforward, requiring minimal structural alteration to your property. Typically completed within a few days, the process is managed by skilled professionals, ensuring safety and quality. Its 220-240V power requirement means it is compatible with standard home electrical systems in India.
