Automatic Passenger Elevators

Name: Automatic Passenger Elevators
Brand: IBIJI LIFTS PVT. LTD.
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Automatic Passenger Elevators Specification

Load Capacity
450 kg - 1600 kg

Overhead Height
4200 mm (standard)

Door Opening Size
700 mm - 1100 mm

Car Dimension
Customizable as per requirement

Noise Level
<60 dB

Machine Room Size
Standard or Machine Room Less options

Inclination
0 (Vertical)

Type
Lifts

Voltage
380V / 415V

Usage
Residential, Commercial, Hospital, Hotel, Mall

Pit Depth
1500 mm (standard)

Hoist Way Size
As per capacity and Car size

Material
Stainless Steel / MS Powder Coated

Drive Type
VVVF (Variable Voltage Variable Frequency)

Power Supply
Electric

Speed
1.0 - 2.5 m/s

Max. Lifting Height
Up to 60 m

Max. Lifting Weight
As per load capacity

Mechanism Type
Traction / Hydraulic

Working Temperature
-5C to +40C

Safety Device
Overload sensor, Emergency alarm, Door interlock

Capacity
6-20 Persons

Finishing Option
Hairline finish, Mirror finish, Wood finish available

Landing Doors
Automatic Center Opening / Telescopic Doors

Communication
Intercom / Emergency phone provided

Ceiling Design
LED Light with Ventilation Fan

Car Operating Panel
Microtouch push buttons with Braille

Passenger Display
LCD / LED display panel

Compliance
IS 14665/ EN81/ Other International Standards

Door Safety
Infrared curtain

Flooring Material
PVC / Granite / Customized

Emergency Operation
Automatic rescue device with battery backup

Energy Efficiency
Low power consumption,

Indicator Type
Digitally illuminated / Dot matrix

Automatic Passenger Elevators Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Automatic Passenger Elevators

Professional & Polished

Our passenger lifts are designed to deliver smooth, safe, and reliable vertical transportation for residential and commercial buildings. Built with advanced safety systems, energy-efficient technology, and elegant interiors, they ensure a comfortable ride while enhancing the overall value of your property.

Modern & User-Friendly

Experience effortless movement with our passenger lifts. Quiet, efficient, and stylish, they are engineered for everyday comfort and long-term performance. With customizable designs and smart safety features, our lifts fit seamlessly into modern living and working spaces.

Premium & Comfort-Focused

Our passenger elevators combine cutting-edge technology with refined design to create a superior travel experience. From gentle acceleration to thoughtfully crafted interiors, every detail is focused on comfort, safety, and reliabilitymaking every ride smooth and stress-free.

Advanced Safety and Accessibility

Every automatic passenger elevator comes equipped with an overload sensor, emergency alarm, infrared door curtain, door interlock, and an automatic rescue device to ensure safe operation under all circumstances. The microtouch operating panel with Braille and dual communication options (intercom and emergency phone) provide enhanced accessibility for all passengers.

Customized Comfort and Aesthetics

Elevators offer extensive customization, including car dimensions, door sizes, and a choice of finishing-hairline, mirror, or wood-and flooring in PVC, granite, or bespoke materials. The car interior features LED lighting for clarity and a ventilation fan for airflow, creating a comfortable environment for every journey.

Efficiency and Compliance

Designed with energy-efficient VVVF drives and operating at noise levels below 60 dB, these elevators ensure low environmental impact and quiet operation. Compliance with IS 14665, EN81, and other international standards assures reliable, safe, and certified performance in any application.

FAQ's of Automatic Passenger Elevators:

Q: How does the automatic rescue device operate during a power outage?

A: The elevator is equipped with an automatic rescue device backed by a battery system. In the event of a power failure, this device activates automatically to safely transport passengers to the nearest landing and open the doors.

Q: What customization options are available for elevator size and design?

A: Car dimensions, door opening sizes (700 mm to 1100 mm), hoist way size, flooring material, and interior finishes can all be tailored according to the architectural needs and aesthetic preferences of your building. Options include hairline, mirror, and wood finishes with PVC, granite, or custom floors.

Q: When is machine room-less installation recommended over a standard machine room?

A: A machine room-less (MRL) configuration is ideal for buildings with limited rooftop or adjacent space, as the lift's machinery is compactly housed within the shaft. Traditional machine room setups are preferred when ample space is available and may ease service accessibility in some projects.

Q: Where can these automatic passenger elevators be installed?

A: These elevators are versatile for use in residential complexes, commercial buildings, hospitals, hotels, and shopping malls, ensuring smooth and efficient passenger transport in various environments.

Q: What safety features protect passengers during elevator use?

A: Passengers benefit from an array of safety measures including an infrared door curtain, overload sensor, door interlock, emergency alarm, and automatic rescue device, ensuring safe and reliable operation at all times.

Q: What are the benefits of energy-efficient VVVF drive technology in these lifts?

A: The VVVF (Variable Voltage Variable Frequency) drive system minimizes power consumption, provides smoother acceleration and deceleration, and reduces mechanical wear, resulting in lower energy bills and longer equipment life.

Q: How is communication ensured in case of emergencies inside the elevator?

A: Each car is equipped with an intercom or emergency phone, allowing passengers to connect with building security or maintenance personnel if assistance is needed.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Passenger Elevator Lift Category

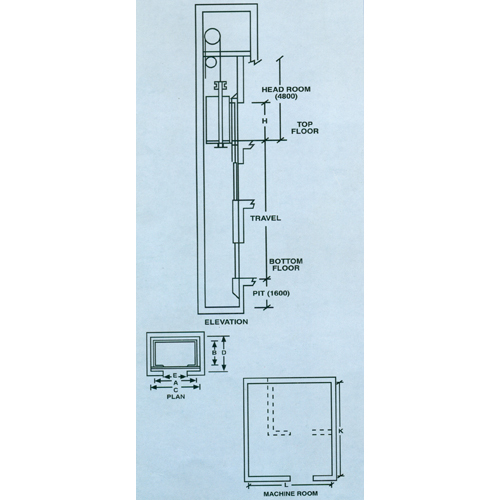

Goods Cum Passenger Lift
